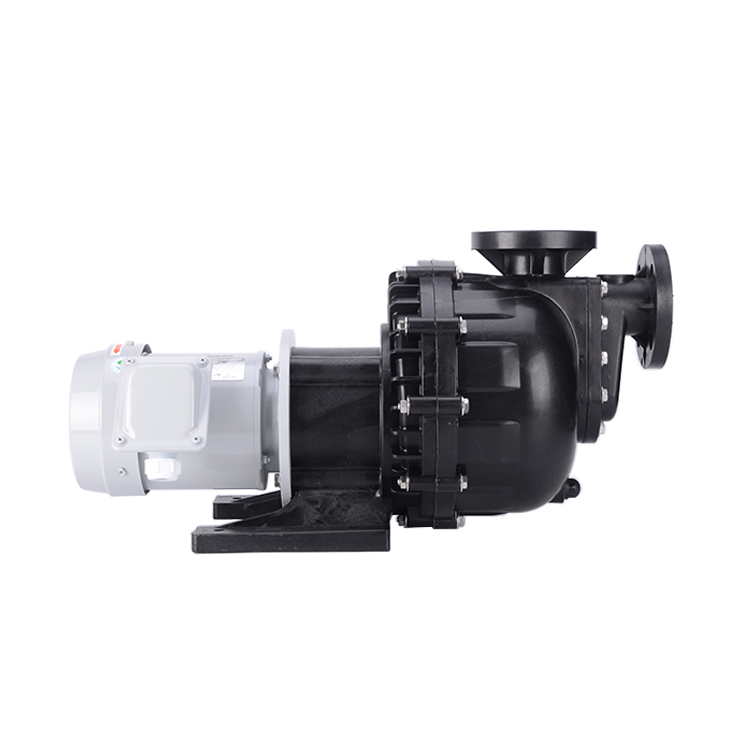

DJZ Series of Mechanical Pump

ข้อมูลจำเพาะของสินค้า

TYPE : DJZ
POWER : 1-0.75KW 2-1.5KW 3-2.2KW 5-3.7KW 7.5-5.5KW 10-7.5KW
FREQUENCY : 50HZ 60HZ
VOLTAGE : V32-2-220V V33-3-380V V34-3-415V
MATERIAL : F-GFPP P-PP H-PPH D-PVDF
IN-OUT SIZE : 44-40/40 55-50/50 88-80/80
RUBBER : E-EPDM V-VITON
SPINDLE : CS-CA+SIC SS-SIC+SSIC
S.G.: 1-1.1 2-1.2

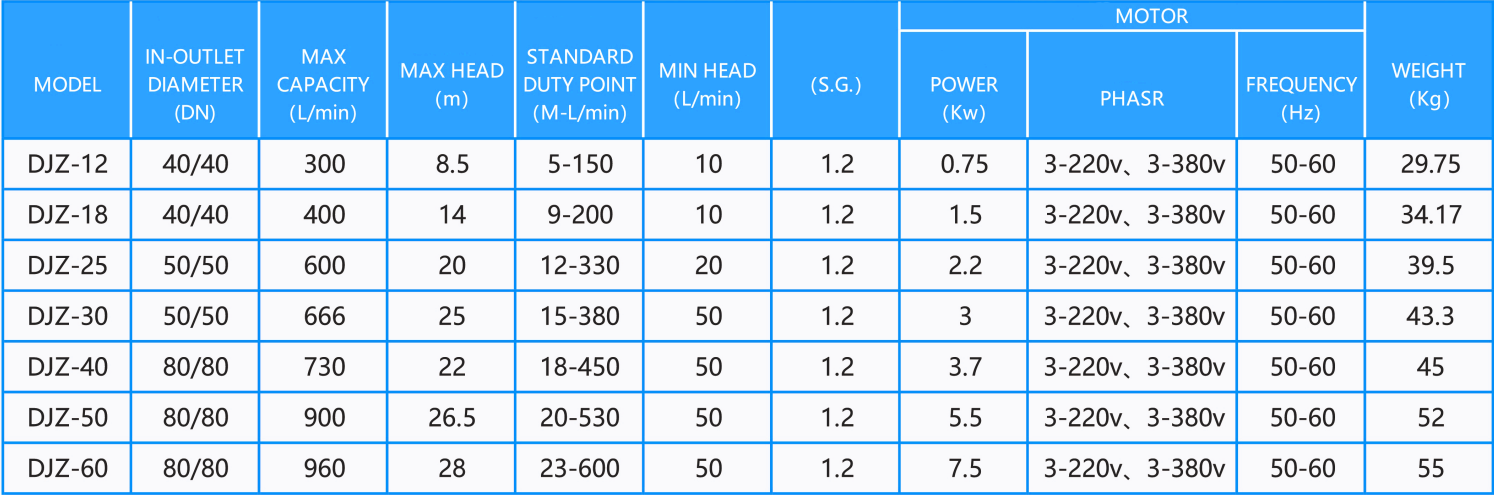

*** Performance parameters ( The following is in the motor frequency for frequency 50 Hz of value ) ***
DJZ Series of Mechanical Pump 6 compressed scaled
ㆍ Shown above the limit is the proportion of the shaft power when the largest, liquid viscosity for 1 mPa ㆍ s value.
ㆍ The key limit refers to than the maximum flow of value, according to the change of flow, proportion limit will also change, such as the need to adjust, please contact us.
ㆍ Environment temperature range: 0 ~ 40 C
DJZ Series of Mechanical Pump 2 compressed scaled
*** Performance ***
DJZ Series of Mechanical Pump 3 compressed scaled
*** Install Dimension ***
DJZ Series of Mechanical Pump 4 compressed
*** Dimension Table ***
DJZ Series of Mechanical Pump 5 compressed scaled
