เครื่องกำจัดควัน (Deodorizer)

เครื่องกำจัดควัน (Deodorizer)

LOW TEMPERATURE PLASMA EXHAUST GAS TREATMENT เครื่องกำจัดควัน (Deodorizer) เป็นนวัตกรรมใหม่ที่ใช้สำหรับกำจัดควันและกลิ่น ที่มีประสิทธิภาพสูง สำหรับกำจัดควันและกลิ่นไม่พึงประสงค์ในกระบวนการผลิต

Deodorizer/เครื่องกำจัดควัน

Low Temperature Plasma Exhaust Gas Treatment

The WT series plasma waste gas purifier uses advanced adsorption decomposition carbonization technology, has a dry process and does not require regeneration of raw materials. It is easy to replace and maintain, and does not increase exhaust. The purifier is made of standard or stainless steel materials with an air volume of 6000-60000m/h. It is designed for the treatment of industrial organic waste gases and has a compact structure, low investment and convenient operation.

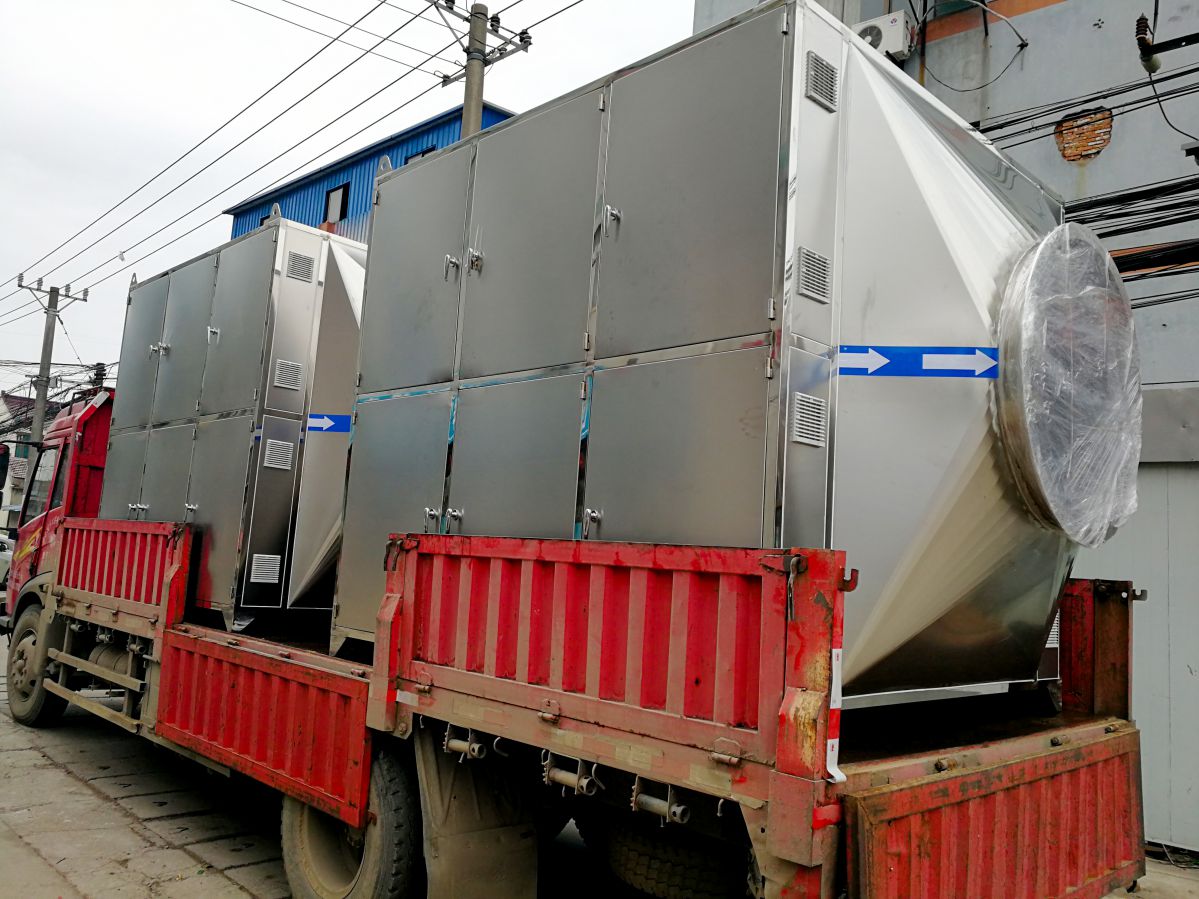

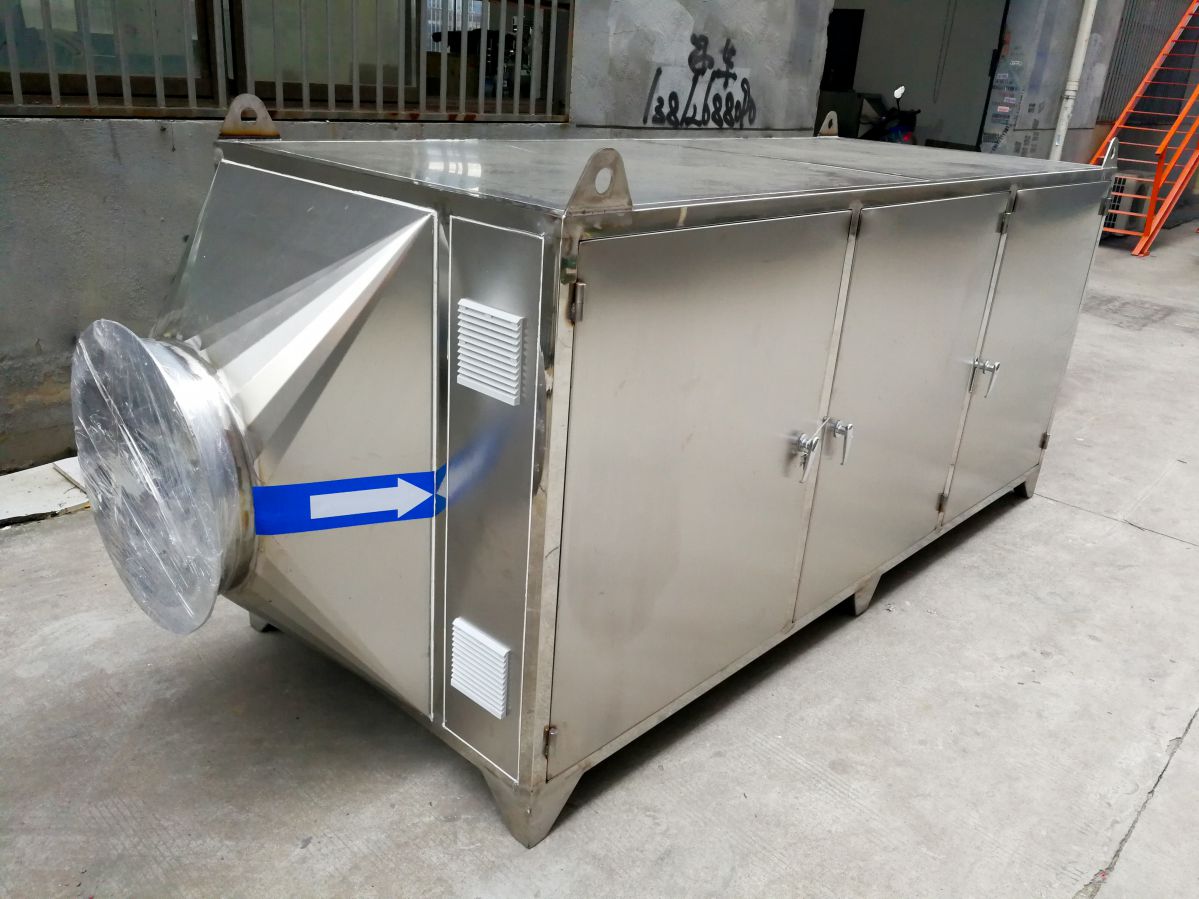

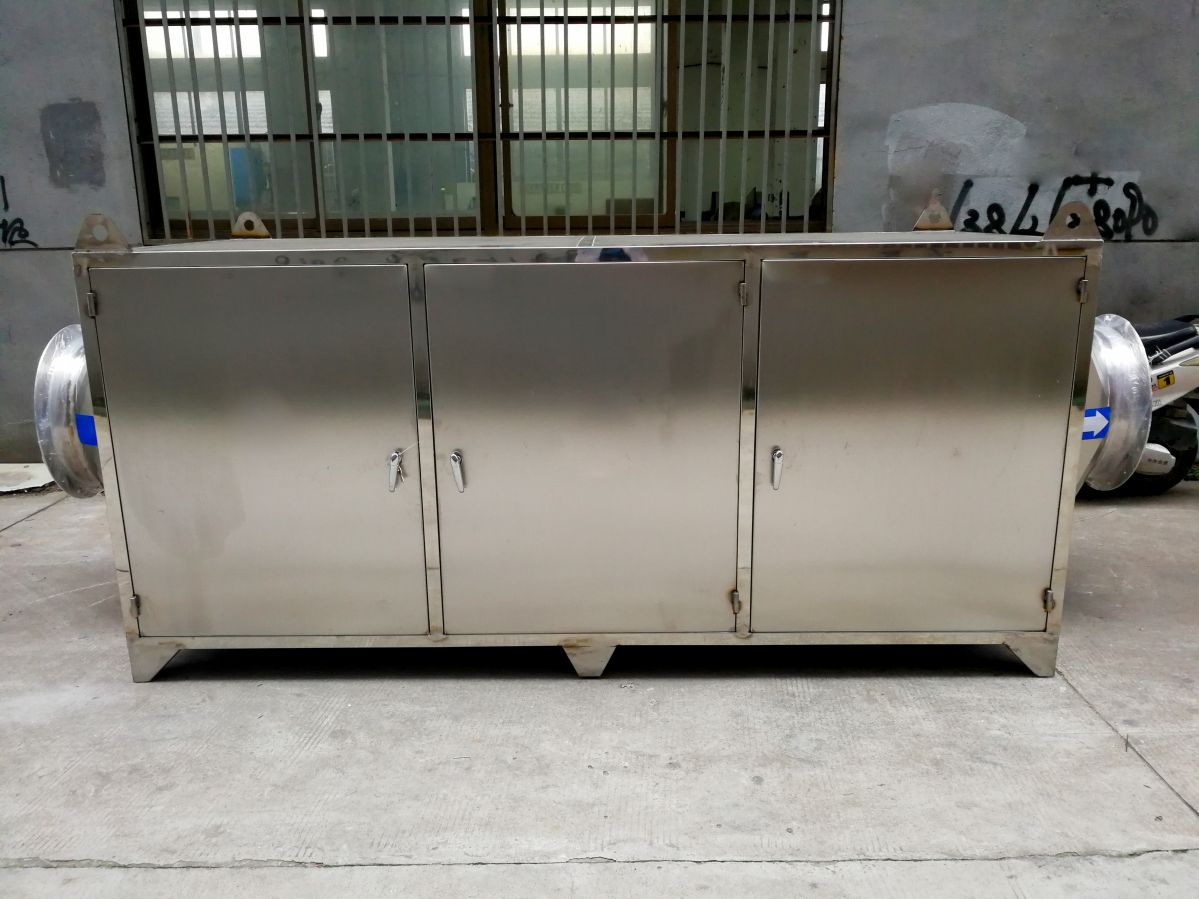

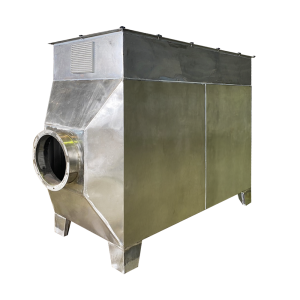

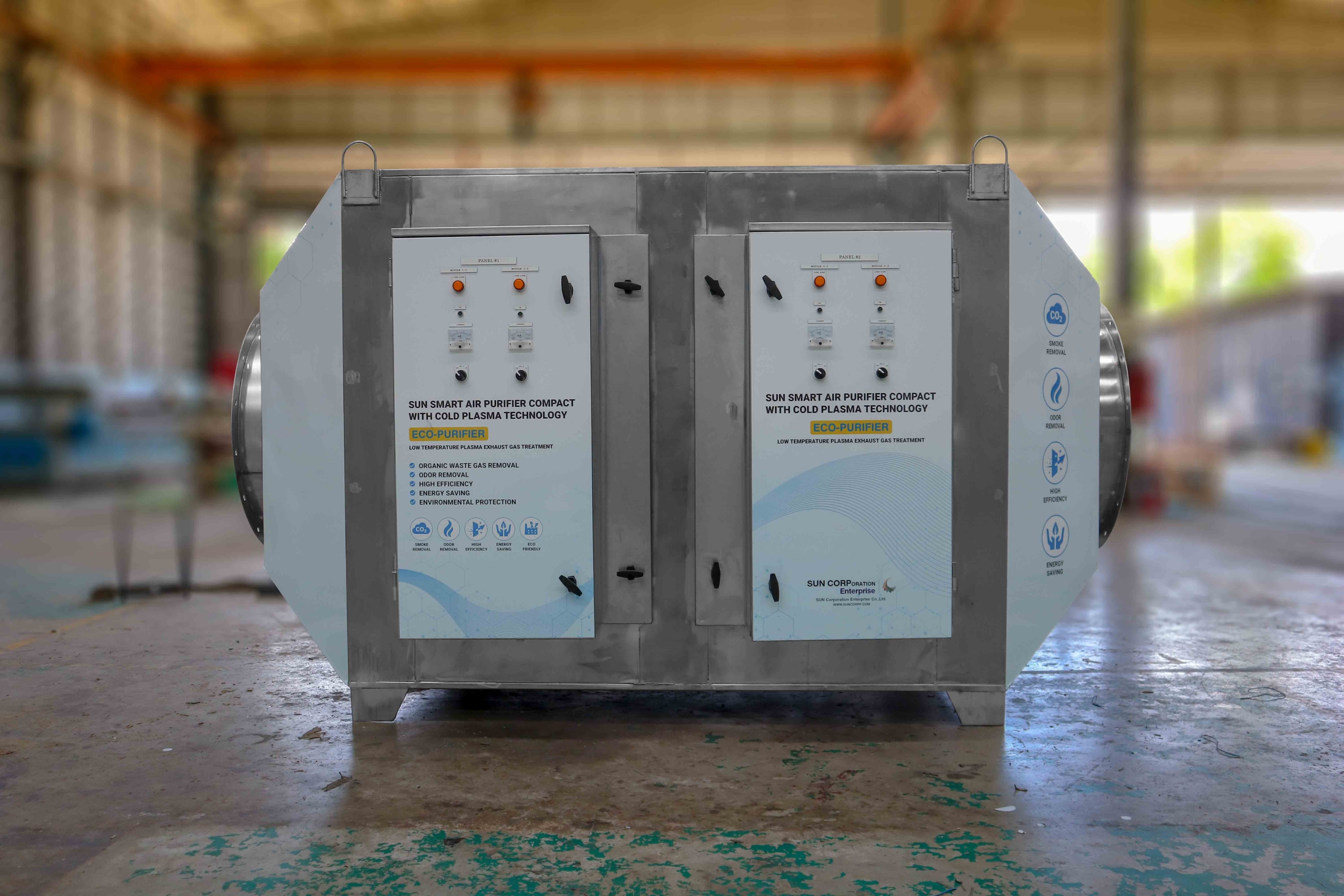

Deodorizer sample Deodorizer

PURIFICATION MACHANISM

1. Plasma is the fourth state of matter and is generated by a high frequency and high voltage discharge. This plasma can break down air and waste gas molecules, producing reactive gases such as free radicals and ions. These active free radicals can effectively destroy viruses and bacteria by disrupting their metabolic processes, leading to death. The plasma can also decompose or reduce organic odor molecules, as well as effectively adsorb and treat fine organic exhaust particulates.

2. The low temperature plasma is characterized by high electron temperatures in the discharge process, but low temperatures of heavy particles. This results in the overall low temperature state of the system. The degradation of pollutants is achieved through the interaction of energetic electrons, free radicals, and other active particles with pollutants in the exhaust gas, leading to their rapid decomposition and subsequent reactions.

3. The basic process of low temperature plasma degradation of pollutants involves several steps:

Process 1 : direct bombardment of high energy electrons
Process 2 : the oxidation of O atoms or ozone O2+e to 20
Process 3 : oxidation of H20+e, OH+H, H20+0, 2HO, H+02 to OH+0 of OH free radicals
Process 4 : the reaction of molecular fragments + oxidation

4. The treatment of untreated waste gases involves the use of a special TiO2 photocatalyst to oxidize hydrogenated filter cotton. This, in combination with ozone, ecological oxygen, and active free radicals, results in multilevel purification of harmful gases, such as waste gas, before they are discharged.

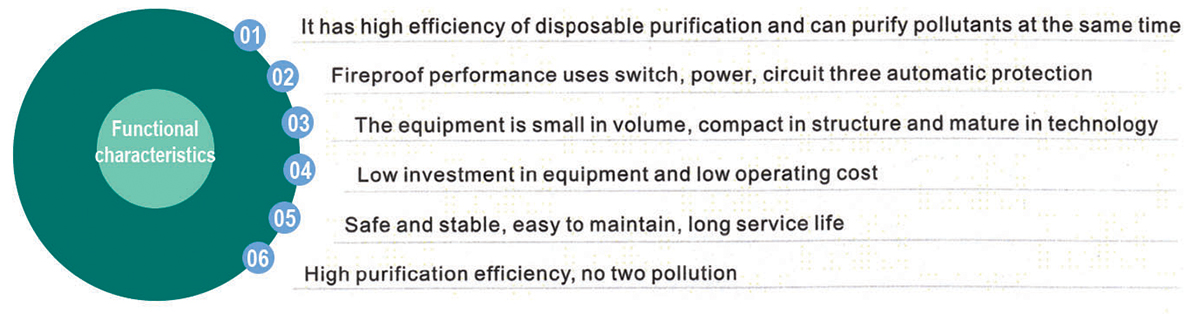

Functional Characteristics

(01) It has high efficiency of disposable purification and can purify pollutants at the same time
(02) Fireproof performance uses switch, power, circuit three automatic protection
(03) The equipment is small in volume, compact in structure and mature in technology
(04) Low investment in equipment and low operating cost
(05) Safe and stable, easy to maintain, long service life
(06) High purification efficiency, no two pollution

Deodorizer image 1 Deodorizer

The Principle of Product Technology

1. This advertisement is for the sale of heaters for welding applications. The heaters come in three materials: PTFE, stainless steel, and titanium. The company, Sun General, claims to carefully inspect the quality of their products before delivery and offers consultation on how to use the product. The heaters are energy-efficient and are sold at affordable prices.

2. This text describes a process for decomposing organic waste gas. It uses a combination of magnetic convection, high energy ultraviolet light, and ozone generation to convert the waste gas into carbon dioxide and water. The process involves the use of ozone to oxidize the waste gas and remove unpleasant odors.

3. The foul gas is treated using purification equipment that uses high energy UV light and ozone to decompose the malodorous substances into low molecular compounds, water and carbon dioxide, which are then exhausted to the outside through the exhaust pipe.

4. The high energy UV beam is used to break the molecular bonds of bacteria in the malodorous gas, destroying its DNA and then oxidizing it with ozone to achieve the goal of deodorization and killing bacteria.

Play Video
Deodorizer

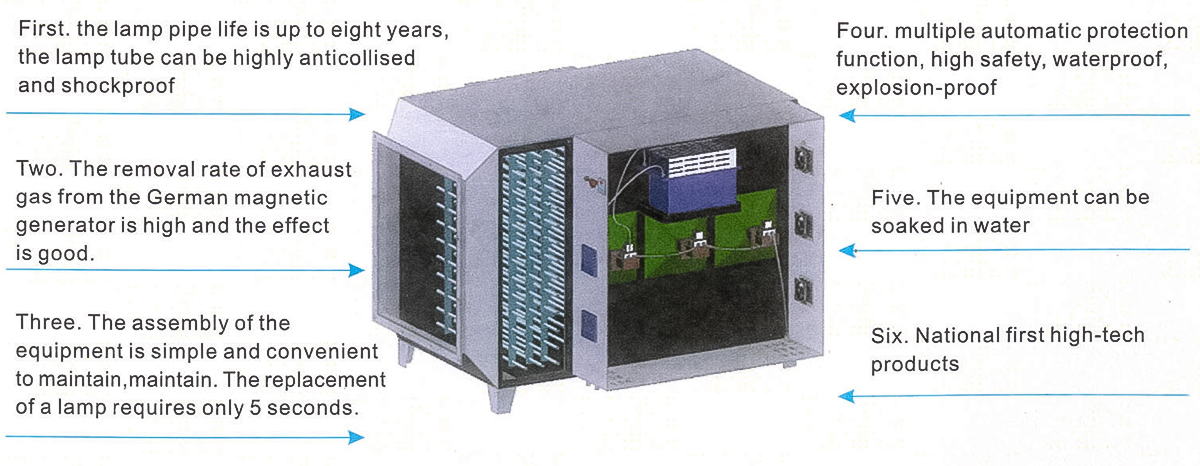

Advantages

1. the lamp pipe life is up to eight years, the lamp tube can be highly anticollised and shockproof
2. The removal rate of exhaust gas from the German magnetic generator is high and the effect is good.
3. The assembly of the equipment is simple and convenient to maintain,maintain. The replacement of a lamp requires only 5 seconds.
4. multiple automatic protection function, high safety, waterproof, explosion-proof
5. The equipment can be soaked in water
6. National first high-tech products

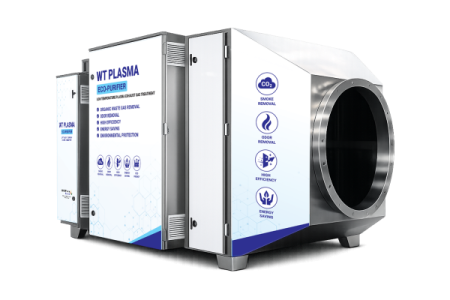

Deodorizer image 2 Deodorizer

The magnetic UV photolysis purifition equipment integrated machine

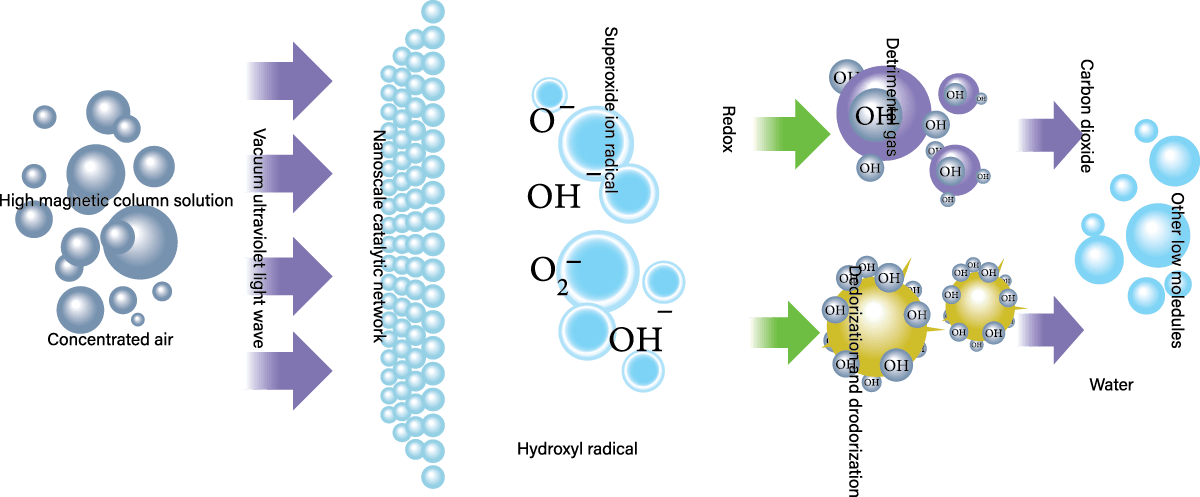

Working principle diagram of magnetic UV photolysis purifier

Deodorizer image 3 Deodorizer

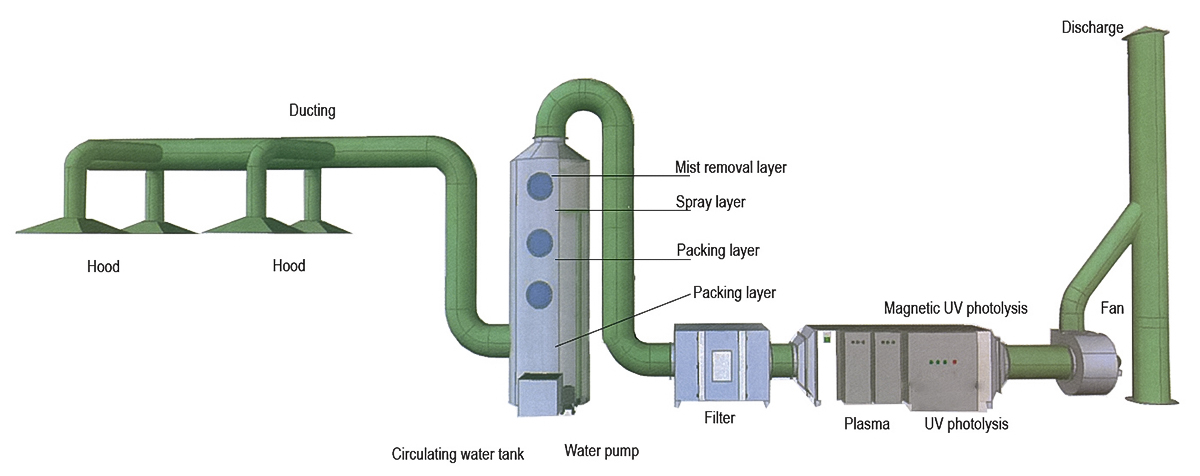

The magnetic UV photolysis purifition equipment integrated machine

Organic waste gas → High magnetic + Ultraviolet (UV light) ++O2 + Photolysis coal → O-+O* (active oxygen)
O + O2 + Bubble micro filtration → O3 → CO2 + H2O (Discharge standard)

Deodorizer image 2 Deodorizer
