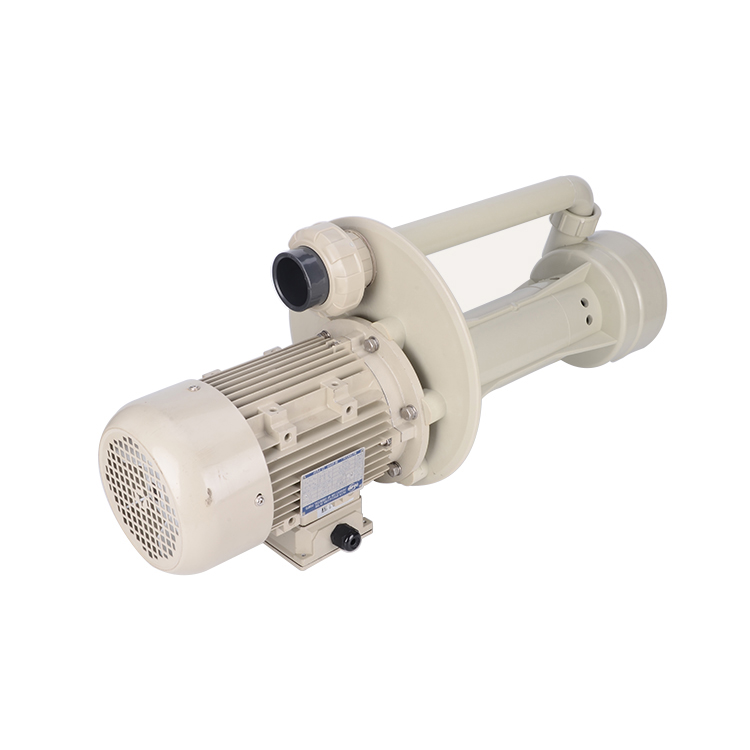

DJL Series Continuous plating preferred vertical pump

รายละเอียดสินค้า

CONTINUOUS PLATING PREFERRED VERTICAL PUMP
Pumps are manufactured from the three materials(PP, PVC, PVDF) to ensure resistance to high heat and corrosion.
Snap ring secures the inlet and reduces the pump head for in tank applications.
Dry vapor seal and air hole on support plate ensure to prevent pumps and bearing from being etched by chemical gas and prolong the using life of pump.
Continuous electroplating vertical pump is suitable for chemical circulation, cooling, spraying, PCB etching, waste water and scrubber applications.

ติดต่อสอบถาม

ข้อมูลจำเพาะของสินค้า

TYPE : DJL
POWER :
FREQUENCY : 50HZ 60HZ
VOLTAGE : V32-3-220V V33-3-380V V34-3-415V
MATERIAL : F-GFPP P-PP H-PPH D-PVDF
IN-OUT SIZE : 54-50/40 65-65/50 86-80/65 110-100/100
RUBBER : V-VITON
S.G. : 1-1.1 4-1.4

*** Performance parameters (The following is in the motro frequency for frequency 50Hz of value) ***
DJL Series Continuous plating preferred vertical pump 2 compressed scaled
ㆍShown above the limit is the proportion of the shaft power when the largest, liquid viscosity for 1 mPaㆍs value.
ㆍ The key limit refers to than the maximum flow of value, according to the change of flow, proportion limit will also change, such as the need to adjust, please contact us.
ㆍEnvironment temperature range: 0 ~ 40 C

*** DJL series decomposition figure ***
DJL Series Continuous plating preferred vertical pump 3 compressed scaled
*** Performance curve ***
DJL Series Continuous plating preferred vertical pump 5 compressed
*** Install Dimension ***
DJL Series Continuous plating preferred vertical pump 4 compressed scaled
*** Dimension Table ***
DJL Series Continuous plating preferred vertical pump 6 compressed scaled
