High Frequency Rectifier สำหรับโปรเสจชุบโลหะ

เรคติไฟเออร์ (Rectifier)

จำหน่าย เร็กติไฟเออร์ อุปกรณ์แปลงกระแสสลับ สำหรับงานชุบโลหะ มีหลายขนาดและหลายรูปทรง ช่วยให้การชุบโลหะได้อย่างปลอดภัยและได้ผลลัพธ์ที่ต้องการ

จำหน่ายและรับซ่อม เรคติไฟเออร์ (Rectifier) สำหรับไลน์ชุบ Plating Machine

Rectifier คืออุปกรณ์หรือวงจรที่ใช้แปลงสัญญาณไฟฟ้าที่มีลักษณะเป็นกระแสไฟฟ้าสลับ (AC) เป็นกระแสไฟฟ้าตรง (DC) โดยมีหน้าที่ตัดเอาส่วนบวกหรือส่วนลบของสัญญาณไฟฟ้า AC ออก เพื่อให้ได้กระแสไฟฟ้า DC ที่สามารถนำไปใช้งานต่อได้ เช่น ใช้งานในอุปกรณ์อิเล็กทรอนิกส์ต่างๆ เช่น ซีดีพลเออร์ ไดโอด และอื่นๆ

วงจร Rectifier ที่ใช้แปลงสัญญาณ AC เป็น DC แบ่งออกเป็น 2 ประเภท ได้แก่

High Frequency Rectifier

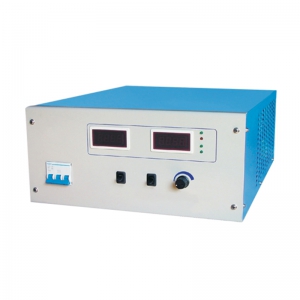

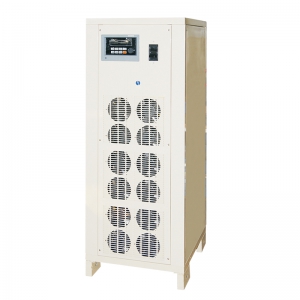

High frequency switching plating rectifier

High Frequency Rectifier

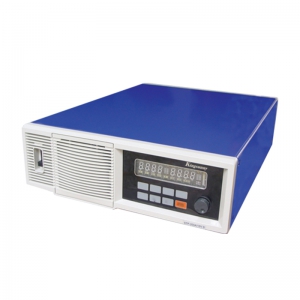

Continuous plating rectifier

High Frequency Rectifier

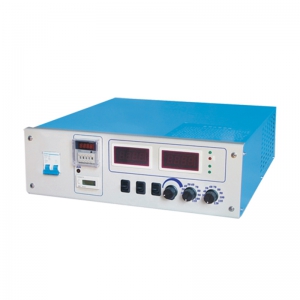

Precious metal plating rectifier

High Frequency Rectifier

Polarity reversing plating rectifier

High Frequency Rectifier

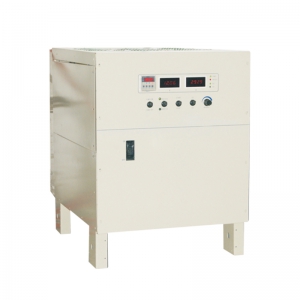

Special rectifier for chrome plating

High Frequency Rectifier

Intelligent plating rectifier

ตารางเปรียบเทียบ Rectifier ระหว่าง SCR และ High Frequency IGBT

 SCR RectifierHigh Frequency IGBT Rectifier
TransformerPower frequency transformerHigh frequency transformer
Controlled componentSilicon controlledField-effect tube
Rectifier Working frequency50HZ17,000HZ
Control modePhase shift triggerPWM modulation
EfficiencyAbout 50%>85%
Power factor0~0.9(changeable)Correction up can reach 0.9 in full range
RippleOnly in a certain range can meet the rated valueFull range can meet the rated value
PrecisionHalf load to full load range 3%Full range < 1% or higher
Control circuitcomplex, with synchronous requirements , Not easy in integrationSimple, Adopts the special-purpose integrated circuit
SizeBigSmall (Only 1/3 to 1/6 size of the SCR save room
WeightHeavylight (Only 1/3 to 1/6 weight of the SCR), easy for transportation
ProtectRelay 100mS,fast acting fuse 10mSFast (1mS)with automatically recover function
PowerBigSmall
Start/Stop with loadNot allowAllow
Interference to power gridBig, difficult to eliminateSmall ,easy to eliminate
Regulation response speedOrdinaryMuch Fast
Microcomputer automatic controlOrdinaryConvenience
Energy savingBad (n<60%)Good (n>90%)
