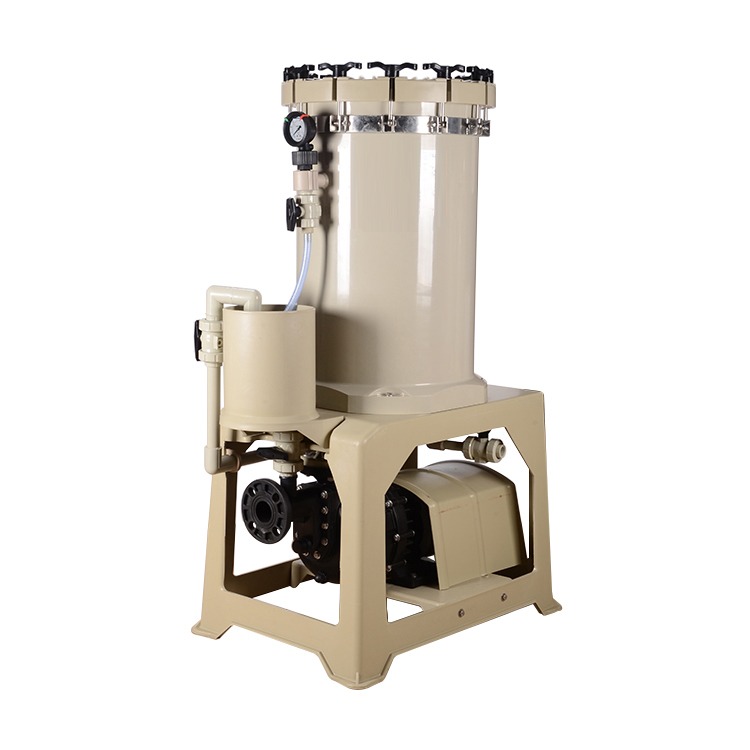

DJZ SERIES SELF-SUCTION CHEMICAL SOLUTION FILTER

รายละเอียดสินค้า

*** FEATURES ***
1. The filter barrel made of PP, acrylic or PVDF has the characteristics of acid and alkali resistance, high temperature resistance.
2. When motor is overloaded or the motor runs in one phase, the power will automatically cut off.
3. Activated carbon treatment equipment is equipped to improve filtrate quality.
4. Design of strong resistance to pressure, no media leakage even at high pressure.
5. In order to provide the best product for customers,each filter is tested strictly in accordance with ISO-9001 quality certification standard before delivery.

ติดต่อสอบถาม

ข้อมูลจำเพาะของสินค้า

TYPE : DJZ
SIZE : 2006-20″x6 2008-20’X8 2012-20’X12 2018-20’X18 3018-30″x18
FILTER MEDIA : M-CONTTON CORE LOCK CAP Y-FILTER PLATE L-FILTER BAG Z-FILTER PAPER T-CARAMBOLA
F-MATERIAL : P-PP D-PVDF
P-MATERIAL : P-PP H-PPH D-PVDF
POWER : 3-45W 4-65W 6-90W 7-180W 10-260W 12-370W 1-0.75KW 2- 1.5KW 3-2.2KW 5-3.7KW
FREQUENCY : 50HZ 60HZ
VOLTAGE : V1-1-110V V32-3-220V V33-3-380V V34-3-415V
IN-OUT SIZE : 40-40/40 50-50/50
RUBBER : E-EPDM V-VITON
IN-OUT PIPE : F-FLANGE U-UNION

*** PERFORMANCE PARAMETERS ***
FILTER DJZ
