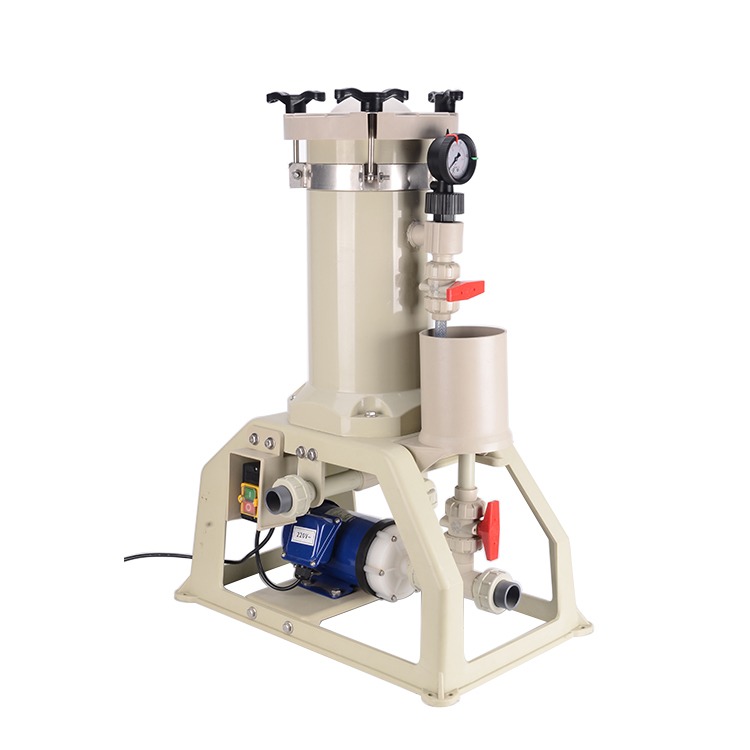

DJX SERIES MAGNETIC CHEMICAL SOLUTION FILTER
*** FEATURES ***
1. It is suitable for circulation filtrations of plating solution, chemical liquid and pure water.
2. Magnetic pump without shaft seal are selected for DJX series filter to ensure no leakage.
3. Filter core design, good filtering effect, simple operation, easy to be cleaned.
4. Design of strong resistance to pressure, no media leakage even at high pressure.
5. The filter barrel made of PP, acrylic or PVDF has the characteristics of acid and alkali resistance, high temperature resistance.
6. In order to provide the best product for customers,each filter is tested strictly in accordance with ISO-9001 quality.
TYPE : DJX
SIZE : 101-10″X1 102-10’x2 104-10”X4 2001-20”x1 2002-20″X2 2004-20″x4 2006-20’x6 2008-20″x8 2012-20″x12 2018-20*x18 3018-30*x18
FILTER MEDIA : M-CONTTON CORE LOCK CAP Y-FILTER PLATE L-FILTER BAG Z-FILTER PAPER T-CARAMBOLA
F-MATERIAL : P-PP D-PVDF
P-MATERIAL : P-PP H-PPH D-PVDF
POWER : 3-45W 4-65W 6-90W 7-180W 10-260W 12-370W 1-0.75KW 2-1.5KW 3-2.2KW 5-3.7KW
FREQUENCY : 50HZ 60HZ
VOLTAGE : V1-1-110V V32-3-220V V33-3-380V V34-3-415V
IN-OUT SIZE : 25-25/25 32-32/32 4 40-40/40 50-50/50
RUBBER : E-EPDM V-VITON
IN-OUT PIPE : F-FLANGE U-UNION
*** PERFORMANCE PARAMETERS ***
